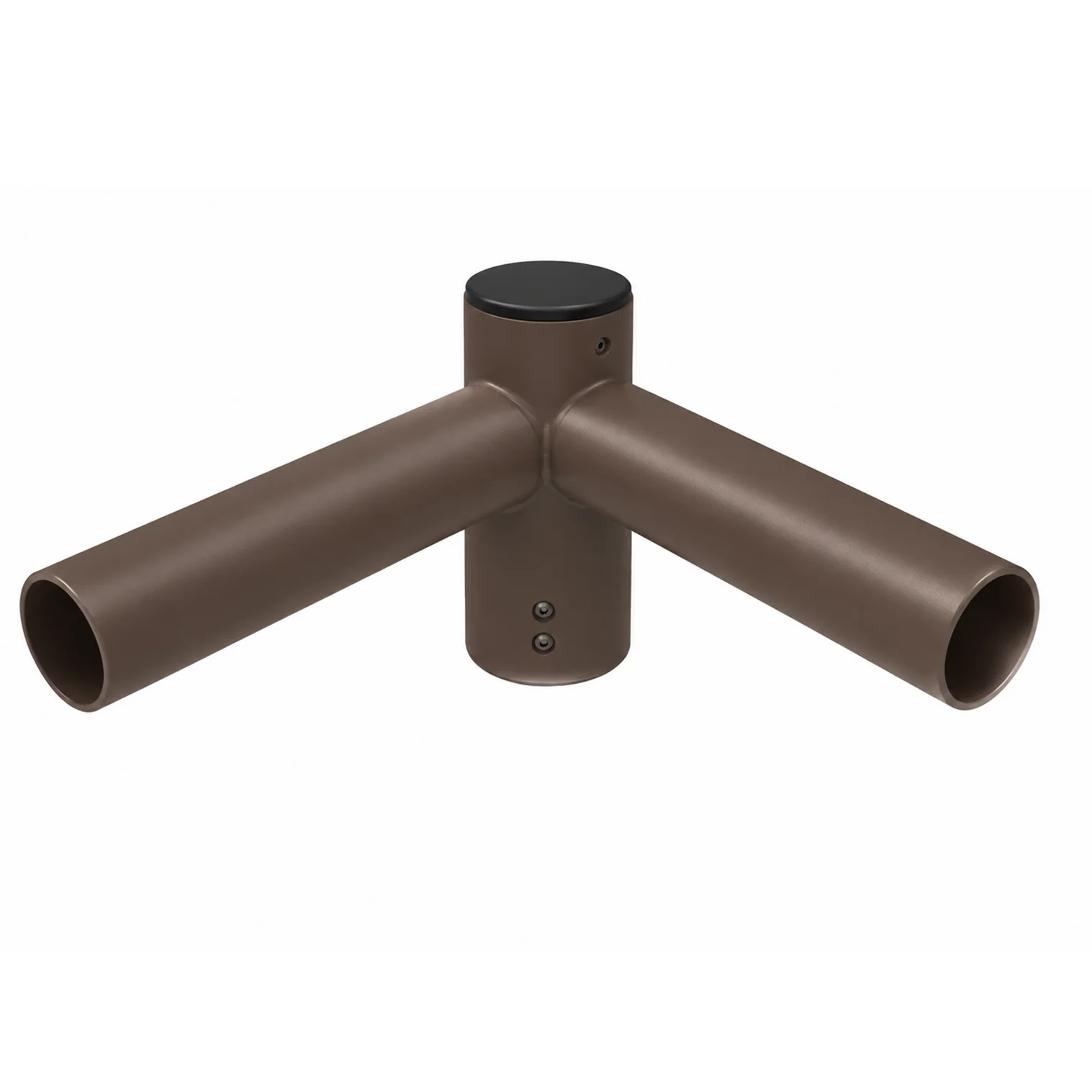

The Ledsion Lighting TN2HL Twin Horizontal Tenon Adapter provides a durable mounting solution for installing two compatible LED area lights or parking lot lights on a single light pole. Its two horizontal arms are arranged at a 90-degree angle, allowing the fixtures to illuminate two adjoining areas from one pole location.
Constructed from heavy-duty Q235 steel, this dual-light pole bracket features a hot-dip galvanized treatment and an outdoor-grade powder-coated finish for improved resistance to corrosion and demanding outdoor conditions. The included metal rain cover helps protect the top opening, while the supplied mounting bolts support a secure installation.
Key Features
- Supports the installation of two compatible LED area lights on one pole
- Two horizontal mounting arms arranged at a 90-degree angle
- Heavy-duty Q235 steel construction
- Hot-dip galvanized and outdoor powder-coated finish
- Designed for parking lot lights, area lights and other pole-mounted fixtures
- Includes one metal rain cover and mounting hardware
- Outdoor finish manufactured in accordance with RoHS requirements
Product Specifications
| Model | TN2HL |
| Product Type | Twin Horizontal Tenon Adapter |
| Number of Arms | 2 |
| Arm Configuration | 90° |
| Material | Q235 Steel |
| Surface Treatment | Hot-dip galvanised with an outdoor powder-coated finish |

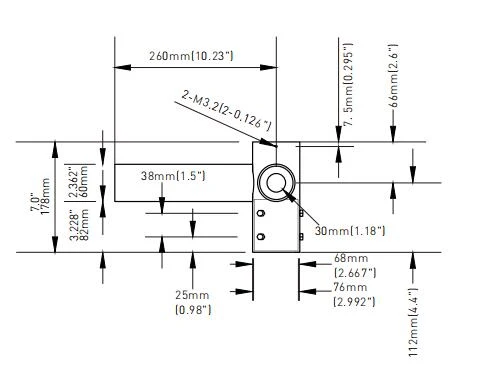

| Overall Arm Length | 10.23 in. (260 mm) |
| Arm Extension to Center | 8.74 in. (222 mm) |
| Overall Height | 7 in. (178 mm) |
| Mounting Hardware | M8 × 1.25 Bolts |
| Included Accessories | 1 Metal Rain Cover and Mounting Bolts |
| Recommended Applications | Parking Lots, Roadways, Commercial Properties and Outdoor Area Lighting |
Recommended Applications
The TN2HL adapter is suitable for parking lots, roadways, commercial properties, campuses, industrial facilities and other outdoor locations where two lighting directions are required from a single pole.
Important Compatibility Notice
Please confirm the pole-top mounting dimensions and the fixture mounting interface before ordering. Light fixtures and light poles are sold separately unless otherwise stated.
Package Includes
- 1 × TN2HL Twin Horizontal Tenon Adapter
- 1 × Plastic Rain Cover
- Mounting Bolts
